Bazaar – php example code – part 17 – ordering tables by category

image_pdfimage_print

Article focus on way how to display content of list inserted in table order by activating visual elements in header of appropriate table. Our focus is enable reorder listening ascending or descending way along selected column.

Expectations from ordering system

Content of the lists display usefull information for page users. Quick way how to obtain relevant data is ordering them ascending or descending by interesting category. For implementation of ordering ability in our tables we must:

  • add links (best way is to associate them with nice graphics that is intuitive for the user) for ascending or descending ordering in header of our table

  • generate GET links for submitting necessary data for ordering functionality

  • prepare appropriate scripts handling calculations for number of displayed data, use LIMIT functionality in SQL queries

  • generate pagination links at the left bottom part of our lists for browsing functionality through our results

How ordering works, brief introduction – our code must take in mind number of items for display and number of list items for display. After calculations number of browsable page, function for generating pagination links must generate appropriate links. User select appropriate page or next/ previous page. Data from user are send to themeself as GET links. From obtained data outr code prepare SQL request containing LIMIT keyword fro slecting only rows from appropriate calculated position and with expected number of selected items. In table output ist next displayed selected data and links on page must be displayed with respect of actually selected page and ordering.

Next pictures visualy display our expectations/ implementations of this functionality.

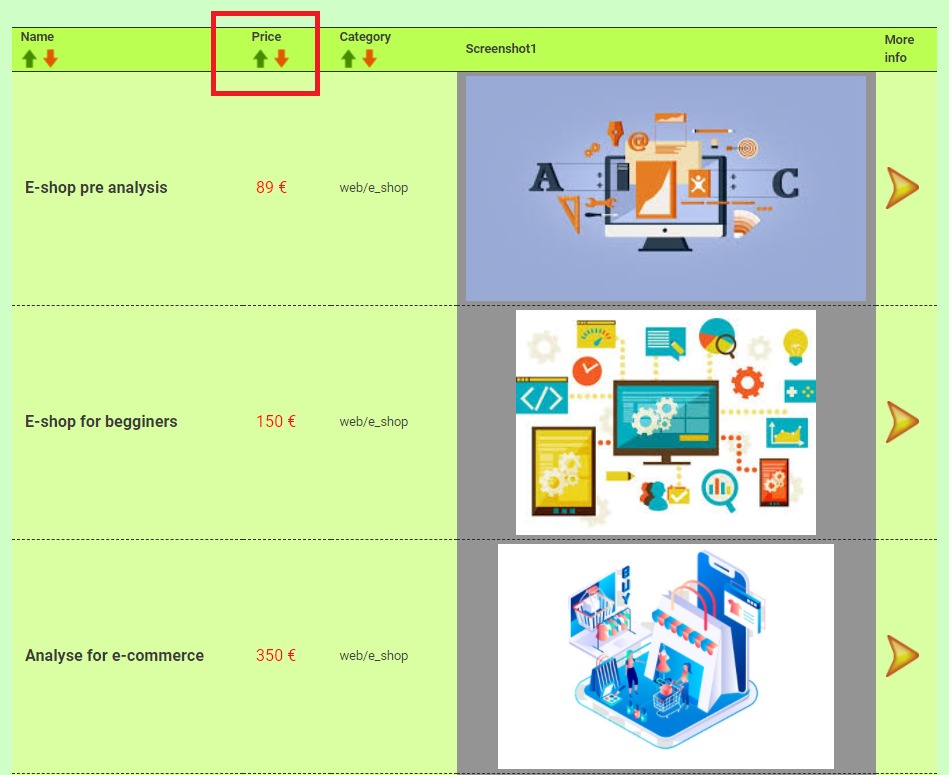

Links for ordering output data along selected category

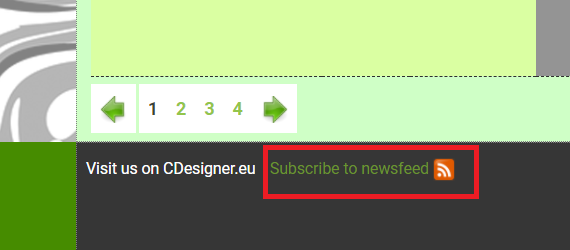

Pagination on the bottom of the page

Code implementing pagination on page

First discused code is responsible for generation of links at the bottom part of a page.

Our code page named functions.php contains function invoked in other pages handling pagination functionality. Contentn of this function is:

<?php

/**
 * Changelog
 * v 1.0 – first working version, update 6.11.2020
 * v 1.1 – for ordering option was updated header of function by adding $sort –> $sort_by and new $order
 *             $odrder variable can by 1 for ASC order and -1 for DESC order, update 28.11.2020
 */
function generate_page_links($user_search, $sort_by, $order, $cur_page, $num_pages) { //($user_search, $sort_by, $order, $cur_page, $num_pages);
    $page_links = „“;
    echo „<br>“;

    // if this is not first in row, we need generate the „previous“ link
    if  ($cur_page > 1) {
        $page_links .= ‚<a id=“pagination“ href=“‚ . $_SERVER[‚PHP_SELF‘] . ‚?usersearch=‘
        .$user_search . ‚&sort_by=‘ . $sort_by . ‚&order=‘ . $order .’&page=‘ . ($cur_page – 1) . ‚“><img src=“./images/previous_icon.png“ alt=“previous image“ width=“30″ height=“30″></a>‘;

    } else {
        $page_links .= ‚<span id=“pagination“><img src=“./images/previous_icon.png“ alt=“previous image“ width=“30″ height=“30″></span> ‚;
    }

    // Loop through the pages generating the page numbered links
    for($i = 1; $i <= $num_pages; $i++) {
        if  ($cur_page == $i) {
        $page_links .= ‚<span id=“pagination“>‘ . $i. ‚</span>‘; // span inline element mark non a tag (unlinked number) as pagination for further formating by css
        } else {
        $page_links .= ‚<a id=“pagination“ href=“‚ . $_SERVER[‚PHP_SELF‘] . ‚?usersearch=‘
        .$user_search . ‚&sort_by=‘ . $sort_by . ‚&order=‘ . $order .’&page=‘ . $i . ‚“>‘ . $i . ‚</a>‘;
        }
    }

    // If this page is not last in row, generate „next“ link
    if  ($cur_page < $num_pages) {
        $page_links .= ‚<a id=“pagination“ href=“‚ . $_SERVER[‚PHP_SELF‘] . ‚?usersearch=‘
        .$user_search . ‚&sort_by=‘ . $sort_by . ‚&order=‘ . $order .’&page=‘ . ($cur_page + 1) . ‚“><img src=“./images/next_icon.png“ alt=“next image“ width=“30″ height=“30″></a>‘;

    } else {
        $page_links .= ‚ <span id=“pagination“><img src=“./images/next_icon.png“ alt=“next image“ width=“30″ height=“30″></span>‘;
    }

    return $page_links;
}

?>

In our code are at current time not implemented all expeted functionality. User serarch is not passed but all other arguments are used for passing necessary data for genration of pagination links.

Oru code must handle situations when there are no more page next or previous, and must be able to generate all other numbered page links. All links are selectable on focus by user.

Real implementation on pages

Next part of index page is responsible for ordering data and iterating through all available pages with content. Our code relevant for this functions is highlighted by blue color.

— output  omited —
/***********************************************************/
/*             Output in paginated form                                                 */
/***********************************************************/

 /***
  *  Display pagination on the page – part included to listening in this area
  */
/* Attempt MySQL server connection. Assuming you are running MySQL
server with default setting (user ‚root‘ with no password) */
$dbc = mysqli_connect(DB_HOST, DB_USER, DB_PW, DB_NAME);

//GET data for pagination send to page herself

//calculate pagination information
$cur_page = isset($_GET[‚page‘]) ? $_GET[‚page‘] : 1;
// results per page default declater as 5 on top of page and changed in submitt part after reset button handling $results_per_page = 5;
$skip = (($cur_page -1) * $results_per_page);





// Check connection
if($dbc === false){
    die(„ERROR: Could not connect to database – stage of article listing. “ . mysqli_connect_error());
}

// first  question to database table for obtaining number of published items in a database – obtain value for $total
$sql = „SELECT * FROM bazaar_item WHERE published=“.“‚1′“.“ AND cart_number=“.“‚0′“.“ ORDER BY item_id DESC „;  // read in reverse order of score – highest score first
$output_for_number_rows_count = mysqli_query($dbc, $sql); // query database
$total = mysqli_num_rows($output_for_number_rows_count);    //get number of rows in databse


//older approach without SORT functionality read all rows (data) from guestbook table in „test“ database
// $sql = „SELECT * FROM bazaar_item WHERE published=“.“‚1′“.“ AND cart_number=“.“‚0′“.“ ORDER BY item_id DESC LIMIT $skip, $results_per_page“;  // read in reverse order of score – highest score first

/**
 * SORTING – PART II. Here is into sql request implemented along which filed and how ascend or desc is output ordered
 */
if(isset($_GET[‚sort_by‘]) && isset($_GET[‚order‘]) ){
    // take a data from GET link generated by adminscript
    $sort_by = htmlspecialchars($_GET[‚sort_by‘]);
    $order = htmlspecialchars($_GET[‚order‘]);
    // debug echo „sort_by“.$sort_by;
    // debug echo „order“.$order;

    if(($sort_by == „name“) && ($order == „1“)) { // along name and ASC order
        $sql = „SELECT * FROM bazaar_item WHERE published=“.“‚1′“.“ AND cart_number=“.“‚0′“.“ ORDER BY name_of_item ASC LIMIT $skip, $results_per_page“;
    };

    if(($sort_by == „name“) && ($order == „-1“)) { // along name and DESC order
        $sql = „SELECT * FROM bazaar_item WHERE published=“.“‚1′“.“ AND cart_number=“.“‚0′“.“ ORDER BY name_of_item DESC LIMIT $skip, $results_per_page“;
    };

    if(($sort_by == „price“) && ($order == „1“)) { // along price and ASC order
        $sql = „SELECT * FROM bazaar_item WHERE published=“.“‚1′“.“ AND cart_number=“.“‚0′“.“ ORDER BY price_eur ASC LIMIT $skip, $results_per_page“;
    };

    if(($sort_by == „price“) && ($order == „-1“)) { // along price and DESC order
        $sql = „SELECT * FROM bazaar_item WHERE published=“.“‚1′“.“ AND cart_number=“.“‚0′“.“ ORDER BY price_eur DESC LIMIT $skip, $results_per_page“;
    };

    if(($sort_by == „category“) && ($order == „1“)) { // along category and ASC order
        $sql = „SELECT * FROM bazaar_item WHERE published=“.“‚1′“.“ AND cart_number=“.“‚0′“.“ ORDER BY subcategory_id ASC LIMIT $skip, $results_per_page“;
    };

    if(($sort_by == „category“) && ($order == „-1“)) { // along category and DESC order
        $sql = „SELECT * FROM bazaar_item WHERE published=“.“‚1′“.“ AND cart_number=“.“‚0′“.“ ORDER BY subcategory_id DESC LIMIT $skip, $results_per_page“;
    };

    if(($sort_by == „default“)) { // along category and DESC order
        $sql = „SELECT * FROM bazaar_item WHERE published=“.“‚1′“.“ AND cart_number=“.“‚0′“.“ ORDER BY item_id DESC LIMIT $skip, $results_per_page“;
    };

} else {  // first run without ordering – no get link generated
    $sql = „SELECT * FROM bazaar_item WHERE published=“.“‚1′“.“ AND cart_number=“.“‚0′“.“ ORDER BY item_id DESC LIMIT $skip, $results_per_page“;  // read in reverse order of score – highest score first
}



/**********************************************************************/
/*        Output in Table – solution 1 – for debuging data from database         */
/**********************************************************************/
// if data properly selected from guestbook database tabele
echo „<br><br>“;
echo „<h4>Latest added items for you! </h4>“;
echo „<br>“;

/***
 *  Obtaining wished number of item per page – option for select
 */
?>
<form  method=“post“ action=“<?php echo $_SERVER[‚PHP_SELF‘]; ?>“>

<div class=“form-group“>
<label> Set expected number of items per page -5 is default:</label>
<input list=“number_per_page“ name=“number_per_page“ placeholder=“please select or write nr.“>
      <datalist id=“number_per_page“> <!– must be converted in subcategory_id in script – marked with (*) –>
          <option value=“5″>
          <option value=“10″>
          <option value=“15″>
          <option value=“20″>
          <option value=“50″>
          <option value=“100″>
        </datalist>



      <button type=“submit“ name=“nr_of_pages“ class=“btn btn-warning“> Use selected number of pages! </button>
</div>

</form>


<?php

echo „<br>“; echo „<br>“;

if($output = mysqli_query($dbc, $sql)){
    if(mysqli_num_rows($output) > 0){  // if any record obtained from SELECT query
        // create table output
        echo „<table>“; //head of table
            echo „<tr>“;
                //echo „<th>id</th>“;
                // functionality for ordering result
                /**
                 * SORTING – PART I. Here are generated GET links for UP/DOWN ordering by appropriate category
                 */
                echo ‚<th>Name  <br /><a id=“SORT“ href=“index.php?sort_by=name&amp;order=1″> <img id=“arrow“ src=“./images/arrowup.png“> </a>
                                <a id=“SORT“ href=“index.php?sort_by=name&amp;order=-1″> <img id=“arrow“ src=“./images/arrowdown.png“> </a> </th>‘; //order 1 up -1 down
                echo ‚<th>Price <br /><a id=“SORT“ href=“index.php?sort_by=price&amp;order=1″> <img id=“arrow“ src=“./images/arrowup.png“> </a>
                                <a id=“SORT“ href=“index.php?sort_by=price&amp;order=-1″> <img id=“arrow“ src=“./images/arrowdown.png“> </a></th>‘;
                echo ‚<th>Category <br /><a id=“SORT“ href=“index.php?sort_by=category&amp;order=1″> <img id=“arrow“ src=“./images/arrowup.png“> </a>
                                <a id=“SORT“ href=“index.php?sort_by=category&amp;order=-1″> <img id=“arrow“ src=“./images/arrowdown.png“> </a> </th>‘;
                echo „<th>Screenshot1</th>“;
                echo „<th>More info</th>“;


            echo „</tr>“;
        while($row = mysqli_fetch_array($output)){ //next rows outputed in while loop
            echo “ <div class=\“mailinglist\“> “ ;
            echo „<tr>“;
                //echo „<td>“ . $row[‚item_id‘] . „</td>“;
                echo „<td class=\“item_name\“>“ . $row[‚name_of_item‘] . „</td>“;
                echo „<td class=\“price\“>“ . $row[‚price_eur‘] . “ € </td>“;

                            /* convert category_id in to category and subcategory */
                            $subcategory_id = $row[‚subcategory_id‘];
                            $category_idsupl    = „“ ;
                            $subcategory_idsupl = „“ ;
                            // (*) — conversion of category and subcategory into category%id

                                //create SELECT query for category and subcategory names from database
                                 $sql_supl = „SELECT category, subcategory FROM bazaar_category WHERE subcategory_id = „.“‚$subcategory_id'“ ;



                                /*$output_supl = mysqli_query($dbc, $sql_supl);
                                $row_supl = mysqli_fetch_array($output_supl);
                                $category_id    = $row_supl[‚category‘] ;
                                $subcategory_id = $row_supl[‚subcategory‘] ;
                                echo „<td>“ . $category_id.“/“.$subcategory_id.“</td>“;*/
                                // execute sql and populate data list with existing category in database
                                if($output_supl = mysqli_query($dbc, $sql_supl)){
                                    if(mysqli_num_rows($output_supl) > 0){  // if any record obtained from SELECT query
                                        while($row_supl = mysqli_fetch_array($output_supl)){ //next rows outputed in while loop

                                            $category_idsupl    = $row_supl[‚category‘] ;
                                            $subcategory_idsupl = $row_supl[‚subcategory‘] ;


                                        }

                                          // Free result set
                                        mysqli_free_result($output_supl);
                                    } else {
                                        echo „There is no souch category-subcategory in category table. Please correct your error.“; // if no records in table
                                    }
                                } else{
                                    echo „ERROR: Could not able to execute $sql. “ . mysqli_error($dbc); // if database query problem
                                }

                echo „<td>“ . $category_idsupl.“/“.$subcategory_idsupl.“</td>“;

                    $image_location = IMAGE_PATH.$row[‚screenshot1‘];
                echo „<td id=\“gray_under_picture\“> <img  src=\“$image_location\“ alt=\“ screenshot of product primary \“  height=\“250\“> </td>“;
                echo ‚<td colspan=“1″><a id=“DEL“ href=“item.php?item_id=‘.$row[‚item_id‘]. ‚“><img id=“next“ src=“./images/next.png“>   </a></td></tr>‘; //construction of GETable link
            echo „</tr>“;
            echo “ </div> “ ;
        }
        echo „</table>“;
        //count nuber of pages total
        $num_pages = ceil($total / $results_per_page);

        //generate navigational page links if we have more than one page

        if($num_pages > 1) {
            $user_search = „“; // not implemented yet, then set as clear values
            if(empty($sort_by)) { // if not obtained by get then default order is applied
                $sort_by=“default“;
            };
            if(empty($order)) { // if not obtained by get then default order is applied
                $order=“1″;
            };

            // included function for pagination generation function stored in functions.php page
            echo generate_page_links($user_search, $sort_by, $order, $cur_page, $num_pages);
            echo „<br><br>“;
        }
        // Free result set
        mysqli_free_result($output);
    } else{
        echo „There is no item for sell. Please add one.“; // if no records in table
    }
} else{
    echo „ERROR: Could not able to execute $sql. “ . mysqli_error($dbc); // if database query problem
}


// Close connection
mysqli_close($dbc);

From our code excerpt can be visible these parts: 1) parts responsible for calculating number of necessary pages for display, 2) part handling ordering logic responsible for creation of SQL queries, 3) table part responsible for display of data and generating links and part 4) invoking function for generating pagination information at the bottom part of page.

Conclusion

Our code fulfil our expectation. Because we used functional approach, maintainability is hard. One big problem that we gained is visible if we work with two or more pagination/ ordering functionality. information about current page is passed by GET link and is one for all ordered tables. When we order along one table, also other tables are iterated by the same page. But this is acceptable solution. because focus of user is only for actually handled part of page.

For futher improvement is way how to maintaing ordering along two or more pagination links best part of focus. Also further abstraction this functionality with OOP implementation can lead to a more reusable part of code.

Full code for further study can be obtained from github here.
